In case of winding copper wire, it is used as a nozzle for conducting it to bobbin. it is used to wind F.B.T, D.Y, transformer, motor and small motor.

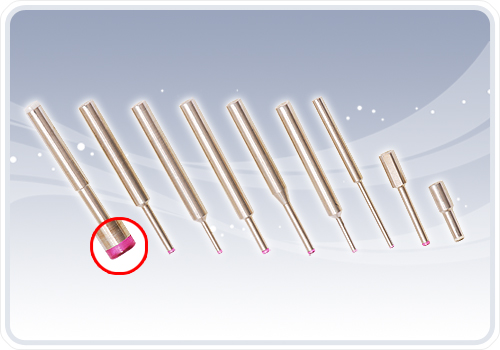

▶ Ruby
Feature
The frictional resistance of copper wire is low by excellent surface process of Ruby. And the difference of electrical value after winding is low. The assembly between Ruby and metals is tighten, so it can protect the separation. Because for nozzle in working, it is suitable for working of frequent colliding.
Materials
SUS + Ruby
Standard
Order production
ID Ø0.3~, OD Ø0.8~

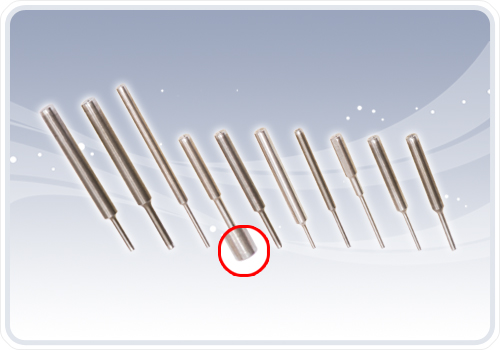

▶ Tungsten Carbide
Feature
It is possible to process the nozzle for thin line and has a little bending of nozzle. Also it is excellent on "R" processing. It is suitable for winding thick copper wire taking much tension.
Materials
Tungsten Carbide
Standard
Order Production
ID Ø0.10~,
OD Ø0.5~
Hardnes
HrA 91.5

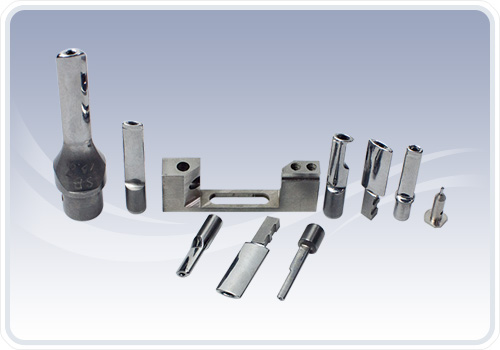

▶ Motor Nozzle BLDC

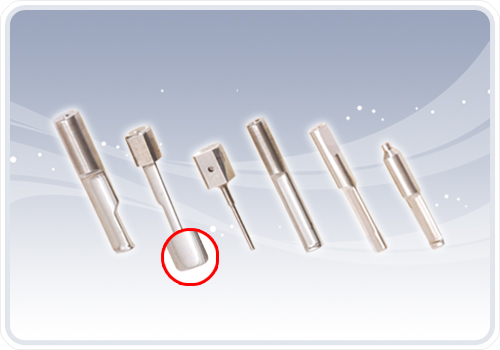

▶ Motor Nozzle
Feature
As a nozzle used while performing a precise coiling by coming and going between bobbins, it is processed as elliptical shape for the most part and must be processed so that the bobbin wouldn't be damaged even if the nozzle hits the bobbin. The "R" shape also must be processed as ellipse.
